G-STR-D-024R
http://mcsuministros.com/wp-content/uploads/2024/03/G-STR.pdf

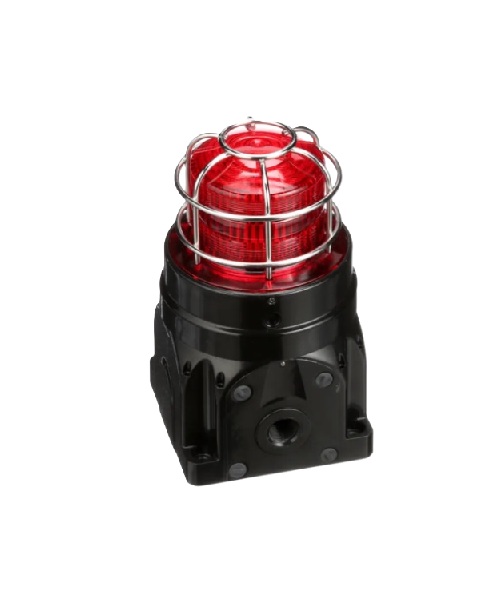

BALIZA ESTROBOSCOPICA ANTIEXPLOSIVA 21J 24VDC 2-1/2″NPT C/REJ. ROJO NEMA 4X UL G-STR-D-024R FEDERAL SIGNAL
Model Global Series Signaling Platform – 21J Strobe The Federal Signal patent pending G-Series Strobes feature a high-intensity xenon strobe tube operated at 21J. The housing is made from non-metallic materials designed to serve the demanding needs of offshore marine and land-based industrial applications, and can dramatically reduce the cost of long-term maintenance. The flameproof “Ex d” versions come standard with two (2) M20 entries. The increased safety “Ex de” versions include a separate terminal chamber for quick field termination or pass-through wiring, and include three (3) M20 entries in a standard configuration. The G-Series Strobe can be combined with all other G-Series audible and visual products in several custom configurations. Custom configurations can be ordered directly from the factory. Optional coupling kits, which allow limited field fixturing, are available. FEATURES • Available in 24VDC, 120VAC and 220-240VAC 50/60Hz • Optional 316 stainless steel ratchet adjustable mounting U-bracket (Field installation required) • Non-metallic corrosion-resistant design • 24VDC models contain a supervisory diode and four wire terminal block • For use in alarm control panel applications • Dome guard included • M20 entries standard • IP66 enclosure • Zone 1, 21 Rated, IECEx, ATEX, Ex d IIC, Ex de IIC and Ex tb IIIC • UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III • UL and cUL Listed for Class 1, Zone 1 AEx db IIC T3: Zone 21, AEx tb IIIC T200°C, excludes increase safety versions (Ex de) • UL Fire Listed (24VDC operating voltage, Clear models only) • Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red and Yellow • Field customizable legend plates available
SPECIFICATIONS Global Series Signaling Platform – Strobe (G) Lamp Life: 10,000 Hour Light Source: Xenon Strobe Operating Temperature Range: -67ºF to 158ºF -55°C to 70°C ATEX/IECEx Certification Marking: II 2GD Ex d IIC Gb, Ex tb IIIC Db IP66. T3 @ 70ºC II 2GD Ex de IIC Gb, Ex tb IIIC Db IP66. T3 @ 70ºC ATEx: Baseefa15ATEX0154X IECEx: IECEx BAS 15.0103X Guard and External Fasteners: 316 stainless steel Terminals: Ex d: 6 way block (3 in, 3 out) Ex de: 3-pole, 4 position quad pole terminal blocks Cable Entries: Ex d: 2 entries – M20 x 1.5 Ex de: 3 entries – M20 x 1.5 UL and cUL Certification Marking: Class I, Division 2, Groups A, B, C, D T1 @ 70°C Class II, Division 2, Groups F, G T4A @ 70°C Class III T4A @ 70°C Net Product Weight Ex d Surface Mount: 7.17 lbs 3.25 kg Ex d U-Bracket Mount: 9.15 lbs 4.15 kg Ex de Surface Mount: 9.99 lbs 4.53 kg
